Slewing Bearing Without Gear

Slewing Bearing Without Gear

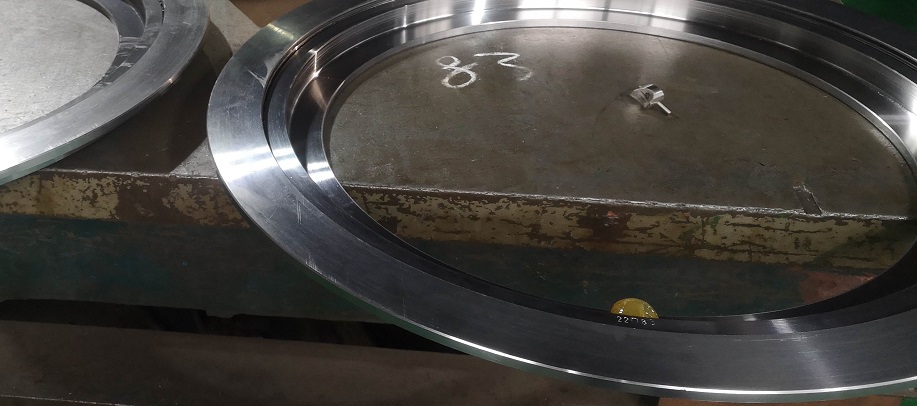

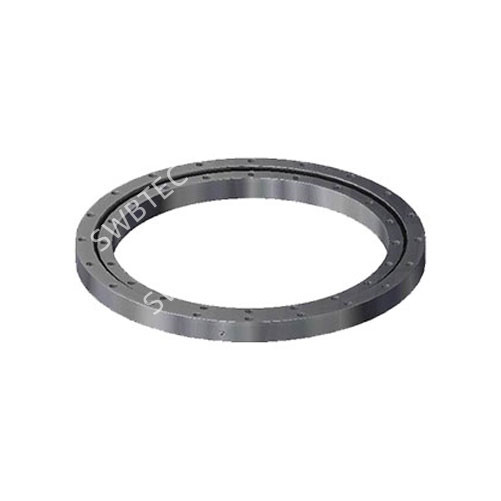

Slewing Bearing Without Gear, SWBTEC slewing bearings without gear usually include ball contact type and crossed roller type. Dimension is from 80mm-2500mm, and the material is 50Mn&42CrMo4. A slewing bearing without gear is widely used on many machines too, like rotators, package machines and lift cranes. As one of the leading slewing bearing manufacturers, whatever special requirement you need, SWBTEC can design and produce bearing slewing for you. We also often prepare a stock of forging steel for non-gear swing set bearings, please contact our sales team if you need any size.


Slewing Bearing Without Gear Features and Benefits

Slewing Bearing Without Gear Features and Benefits


There are not too many slewing bearings without gear in our normal order. Some customers require that the slewing bearing without teeth must have a preload. In order to meet the needs of customers, our technicians have developed the preloaded slewing bearing production process and measuring process successfully.


In general, it relies on the axial displacement between the inner and outer small slewing ring of the bearing to eliminate part or all of the clearance to achieve preload. How do slewing bearing manufacturers measure preload?

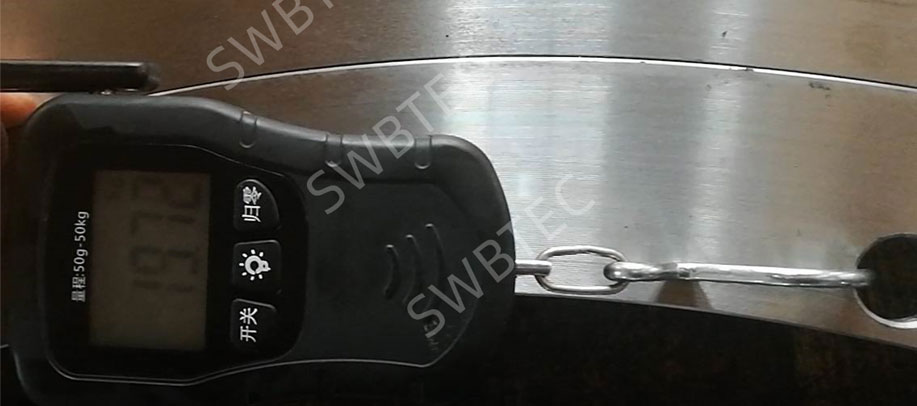

The method slew ring bearing manufacturers use is the starting torque method: measure the starting tangential force with a tension meter, and calculate the starting torque. After the torque is obtained, the preload is estimated by the relationship between the starting torque and the preload.


Slewing Bearing Without Gear Application

Slewing Bearing Without Gear Application


SWBTEC slewing bearing without gear is widely used in JIB cranes. JIB crane is an industrial component and is a light-duty crane with light working strength. It consists of a column, a slewing arm, a slewing drive device, and an electric hoist. The lower end of the column is fixed on the concrete foundation by anchor bolts. For the application of this kind of slewing bearing, it is necessary to add lubricating grease regularly according to the working environment to protect the raceway. The raceway should be filled with lubricating grease after 50 working hours for the first time, and then every 300 working hours after that. The slewing bearing must be filled with grease before and after being placed for a long time. Filling grease should be carried out under the condition of slow rotation of the slewing bearing. When the grease overflows from the seal, it means that the filling is completed.

How Does a Slewing Bearing Without Gear Work

A slewing bearing without gear consists of an inner and outer ring with rolling elements (usually balls or rollers) sandwiched between them. The rolling elements facilitate smooth rotation between the rings, allowing the bearing to support and transmit loads. These small slewing bearing is often used in applications where an external gear or drive mechanism is employed separately for rotational motion.

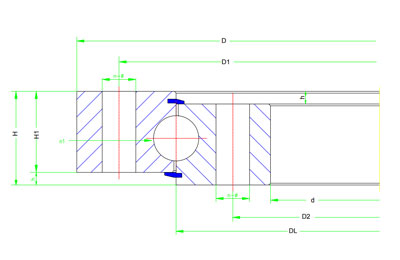

Slewing Bearing Without Gear Specifications

Slewing Bearing Without Gear
MODELDIMENSIONMOUNTING HOLEN.W
THOUGH HOLE(Type A)SCREW HOLE(Typr B、C、D)kg
DdHhD1D2φnD1D2d1Ln
mmmmmm
QU315.2040822260103702601710370260M16241031
QU355.2044826260104103001710410300M16241033
QU400.2049330760104553451712455345M16241242
QU450.2054335760105053951712505395M16241247
QU500.2059340760105554451714555545M16241453
QU560.2065646470106185021714618502M16301472
QU630.2072653470106885721716688572M16301680
QU710.2080661470107686521718768652M16301891
QU800.2089670470108587421720858742M163020102
QU800.2590869278108647362218864736M203618130
QU900.25100879278109648362220964836M203620146
QU1000.2511088927810106493622241064936M203624162
QU1000.3211248769010107492624241074926M224024212
QU1120.321244996901011941046242811941046M224028237
QU1250.3213741126901013241176243213241176M224032264
QU1400.3215241276901014741326243614741326M224036285
QU1250.40139411081021213361164263213361164M244532351
QU1400.40154412581021214861314263614861314M244536393
QU1600.40174414581021216861514264016861514M244532455
QU1800.40194416581021218861714264418861714M244544507
QU1600.50176614341241217041496304017041496M275040647
QU1800.50196616341241219041696304419041696M275044730
QU2000.50216618341241221041896304821041896M275048812
QU2240.50240620741241223442136305423442136M275054909
QU2500.50266623341241226042396306026042396M2750601015
QU2500.60269623041501426262374336026262374M3056601457

A slewing bearing without gear consists of an inner and outer ring with rolling elements (usually balls or rollers) sandwiched between them. The rolling elements facilitate smooth rotation between the rings, allowing the bearing to support and transmit loads. These small slewing bearing is often used in applications where an external gear or drive mechanism is employed separately for rotational motion.

Expertise and Experience: SWBTEC has extensive expertise and experience in the field of slewing bearing without gear. We specialize in the design, manufacturing, and supply of high-quality slewing bearings without gear, ensuring that you receive a reliable and well-engineered product.

Customization: SWBTEC offers customization options to meet your specific application requirements. We can provide tailored solutions in terms of size, load capacity, materials, and other specifications, ensuring that the small slewing bearing fits your needs perfectly.

Corrosion Protection: SWBTEC pays attention to corrosion protection measures to ensure the longevity of their slewing bearings. We can apply suitable surface treatments and coatings to enhance corrosion resistance and protect the bearings in harsh operating environments.

Competitive Pricing: SWBTEC aims to provide cost-effective solutions without compromising on quality. Our slewing bearing price is competitive, making the slewing bearings without gear an attractive option in terms of value for money.


Slewing Bearing Without Gear FAQs



  • Q What materials are commonly used in the construction of slewing bearings without gear?

    Slewing bearings without gear are typically made from high-quality steel, such as chrome-molybdenum steel or stainless steel, to provide strength, durability, and corrosion resistance. The choice of material depends on factors like load capacity, operating conditions, and cost considerations.

  • Q Are slewing bearings without gear prone to corrosion?

    While the small slewing ring can be susceptible to corrosion if not properly protected, the use of corrosion-resistant materials and appropriate surface treatments can significantly enhance their resistance to rust and corrosion. Regular maintenance and lubrication are also important to prevent corrosion and ensure optimal performance.

  • Q How do I select the right size and type of slewing bearing without gear for my application?

    Selecting the appropriate slewing bearing without gear involves considering factors such as load requirements, operating conditions (including speed and temperature), installation space limitations, and required service life. It is recommended to consult with manufacturers or engineering professionals who specialize in slewing gear bearing to ensure proper selection based on your specific application parameters.
