Slewing Ring Bearing With External Gear

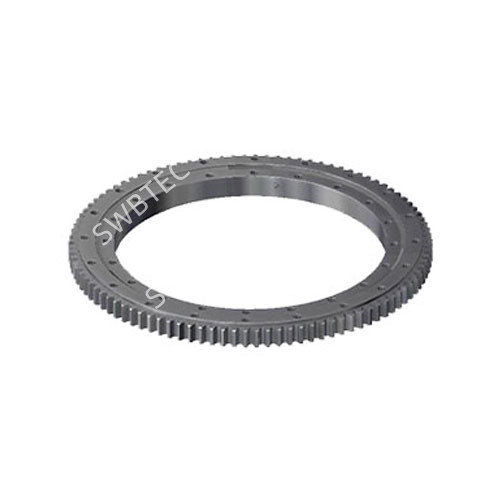

Slewing Ring Bearing With External Gear is with gear on the external ring, it is processed by a gear shaping machine. Customer can prefer the gear hardening treatment or not according to the working condition, if it need high load and press, we advise to do hardening treatment. Due to the gear is on the outer ring, it can maximized the use of the limited space of the slewing ring and it is very easy to check the gear engagement and failure diagnosis. Another advantage is due to the large pitch circle diameter of the outer gear, it can be better to achieve a larger transmission ratio and greatly reduce the circuar force and torque to the related pinion.

Slewing Ring Bearing With External Gear Features and Benefits

Regarding the problems of the slewing bearing teeth in the work, we have not received any complaints from customers in recent years, because our procedure technology of slewing bearing with internal gear and slewing bearing with external gear is very mature for the processing of teeth, especially the heat treatment of teeth.

The quenching of the teeth includes surface quenching, root tooth & surface quenching and full quenching.

The surface hardness of the quenched part is 50-60HRC, and the depth of the effective hardened layer must also meet the corresponding requirements according to the size of the teeth, and there should be no cracks on the surface of the tooth after hardening treatment.

We have been inspecting each set of products in strict accordance with the customer drawing requirements.

Slewing Bearing With External Gear

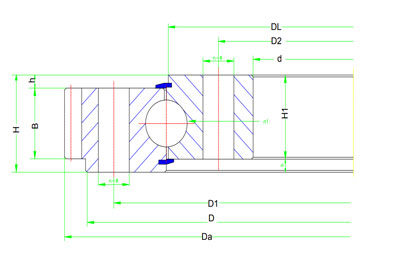

MODEL	DIMENSION				MOUNTING HOLE									GEAR DATA					N.W
	DIMENSION				THROUGH HOLE				SCREW HOLE					GEAR DATA					kg
	D	d	H	h	D1	D2	φ	n	D1	D2	M	L	n	z	m	Da	B	X
	mm				mm			n	mm				n	z	mm
QW315.20 QW315.20A	406	222	60	10	370	260	17	10	370	260	M16	24	10	140 106	3 4	423 428	40	-0.5	35 36
QW3550.20 QW355.20A	446	262	60	10	410	300	17	10	410	300	M16	24	10	153 116	3 4	462 468	40	-0.5	40 41
QW400.20 QW400.20A	490	307	60	10	455	345	17	12	455	345	M16	24	12	127 103	4 5	512 520	40	-0.5	45 47
QW450.20 QW450.20A	540	357	60	10	505	395	17	12	505	395	M16	24	12	140 113	4 5	564 570	40	-0.5	51 52
QW500.20 QW500.20A	590	407	60	10	555	445	17	14	555	445	M16	24	14	122 103	5 6	615 624	40	-0.5	56 58
QW560.20 QW560.20A	654	464	70	10	618	502	17	14	618	502	M16	30	14	169 136	4 5	680 685	50	-0.5	78 79
QW630.20 QW630.20A	724	534	70	10	688	572	17	16	688	572	M16	30	16	186 150	4 5	748 755	50	-0.5	86 88
QW710.20 QW710.20A	804	614	70	10	768	652	17	18	768	652	M16	30	18	166 139	5 6	835 840	50	-0.5	99 101
QW800.20 QW800.20A	894	704	70	10	858	742	17	20	858	742	M16	30	20	154 116	6 8	930 936	50	-0.5	114 114
QW800.25 QW800.25A	904	692	78	10	864	736	22	18	864	736	M20	36	18	156 118	6 8	942 952	58	-0.5	143 147
QW900.25 QW900.25A	1004	792	78	10	964	836	22	20	964	836	M20	36	20	130 105	8 10	1048 1060	58	-0.5	162 168
QW1000.25 QW1000.25A	1104	892	78	10	1064	936	22	24	1064	936	M20	36	24	143 115	8 10	1152 1160	58	-0.5	182 185
QW1000.32 QW1000.32A	1120	876	90	10	1074	926	24	24	1074	926	M22	40	24	144 116	8 10	1160 1170	70	-0.5	227 232
QW1120.32 QW1120.32A	1240	996	90	10	1194	1046	24	28	1194	1046	M22	40	28	129 108	10 12	1300 1308	70	-0.5	272 275
QW1250.32 QW1250.32A	1370	1126	90	10	1324	1176	24	32	1324	1176	M22	40	32	142 119	10 12	1430 1440	70	-0.5	302 309
QW1400.32 QW1400.32A	1520	1276	90	10	1474	1326	24	36	1474	1326	M22	40	36	131 113	12 14	1584 1596	70	-0.5	337 347
QW1250.40 QW1250.40A	1390	1108	102	12	1336	1164	26	32	1474	1164	M24	45	32	144 120	10 12	1450 1452	80	-0.5	396 392
QW1400.40 QW1400.40A	1540	1258	102	12	1486	1314	26	36	1486	1314	M24	45	36	133 114	12 14	1608 1610	80	-0.5	448 443
QW1600.40 QW1600.40A	1740	1458	102	12	1686	1514	26	40	1686	1514	M24	45	40	150 129	12 14	1812 1820	80	-0.5	528 534
QW1800.40 QW1800.40A	1940	1658	102	12	1886	1714	26	44	1886	1714	M24	45	44	143 126	14 16	2016 2032	80	-0.5	583 607
QW1600.50 QW1600.50A	1762	1434	124	12	1704	1496	30	40	1704	1496	M27	50	40	151 130	12 14	1824 1834	100	-0.5	714 727
QW1800.50 QW1800.50A	1964	1634	124	12	1904	1696	30	44	1904	1696	M27	50	44	145 127	16 18	2044 2048	100	-0.5	845 843
QW2000.50 QW2000.50A	2162	1834	124	12	2104	1896	30	48	2104	1896	M27	50	48	139 124	16 18	2240 2250	100	-0.5	912 927
QW2240.50 QW2240.50A	2402	2074	124	12	2344	2136	30	54	2344	2136	M27	50	54	154 138	16 18	2480 2502	100	-0.5	1020 1078
QW2500.50 QW2500.50A	2662	2334	124	12	2604	2396	30	60	2604	2396	M27	50	60	152 137	18 20	2754 2760	100	-0.5	1171 1175
QW2500.60 QW2500.60A	2696	2304	150	14	2626	2374	33	60	2626	2374	M30	56	60	154 139	18 20	2790 2800	122	-0.5	1677 1701
