Name: High Precison Cross Roller Slewing Bearing
Brand: Ningguo Swbtec Industry Co., Ltd.

High Precison Cross Roller Slewing Bearing

High Precision Cross Roller Slewing Bearing can bear axial, radial and tilting moment load from different directions due to the roller inside is arranged vertically and in a 90°V groove. This design can minimum the dimensions of inner ring and outer rings and make the bearing with high rigidity and high precision which can reach to P5, P4, P2, so it is the optimal choice for applications such as industrial robot, rotator, precision rotary table, medical equipment and military equipment.

Features and Benefits of High Precison Cross Roller Slewing Bearing

High precision cross roller slewing bearing have very strict requirements on equipment accuracy.

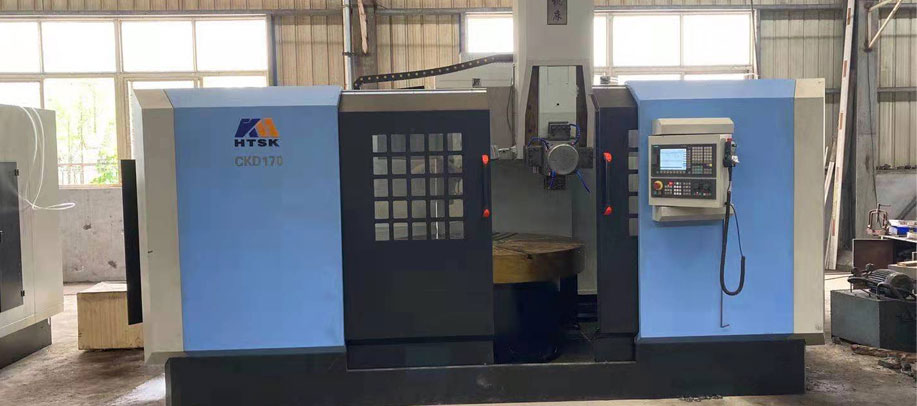

Only qualified high-precision equipment can produce high-precision slewing bearings. For this reason, our company regularly updates the key equipment for the production of slewing bearings every few years, including raceway equipment, Precision lathes equipment.

High-precision equipment, our constantly updated production process, and experienced front-line workers ensure that our products can always meet the drawing requirements in terms of accuracy.

We are committed to the pursuit of perfection in harshness, so that make sure customers are satisfied with each of our products.

Shaft	MODEL		DIMENSION				Mounting dimensions		CRBC		CAB		N.W
Shaft	WITH CAGE	Full Complement	INNER RING d	OUTER RING D	WIDTH B	Chamfer	ds	Dh	Dynamic load rating C(KN)	Static load rating Co(KN)	Dynamic loadrating C(KN)	Static load rating Co(KN)	Kg
40	CRBC 4010	CRB 4010	40	65	10	03	44	54	4.28	5 14	5 98	8.04	0.15
50	CRBC 5013	CRB 5013	50	80	13	0.6	55	71	10.7	12.6	14.2	18.4	0.29
60	CRBC 6013	CRB 6013	60	90	13	0.6	64	81	11.6	14.6	15.4	21.5	0.33
70	CRBC 7013	CRB 7013	70	100	13	0.6	75	91	12.3	16.7	17	25.5	0.38
80	CRBC 8016	CRB 8016	80	120	16	06	86	107	18.2	25.5	24.3	37.5	0 74
90	CRBC 9016	CRB 9016	90	130	16	1	98	118	19.4	28.6	25.9	42.1	0.81
100	CRBC10020	CRB 10020	100	150	20	1	108	134	31.5	45.1	39.4	61.1	1.45
110	CRBC11020	CRB 11020	110	160	20	1	118	144	33.5	50.7	41.2	66.7	1.56
120	CRBC12025	CRB 12025	120	180	25	1.5	132	164	47.7	70.5	59.9	95. 4	2.62
130	CRBC13025	CAB 13025	130	190	25	15	140	172	49.2	74.8	61	998	2.82
140	CRBC14025	CRB 14025	140	200	25	1.5	151	183	50.7	79.2	64.1	108	2.96
150	CRBC15025	CRB 15025	150	210	25	1.5	160	192	53.8	87.7	65	113	3.16
150	CRBC15030	CRB 15030	150	230	30	1.5	166	202	69.2	108	85.9	144	5.3
200	CRBC20025	CAB 20025	200	260	25	2	208	239	60.2	110	75.3	148	4
	CRBC20030	CRB 20030	200	280	30	2	218	262	108	178	133	234	6.7
	CRBC20035	CRB 20035	200	295	35	2	221	274	137	215	168	282	9.58
250	CRBC25025	CRB 25025	250	310	25	2.5	259	290	67.2	136	83.9	183	4.97
	CRBC25030	CRB 25030	250	330	30	2.5	265	310	116	208	146	283	8.1
	CRBC25040	CRB 25040	250	355	40	2.5	271	330	179	299	215	382	14.8
300	CRBC30025	CRB 30025	300	360	25	2.5	310	341	74	162	91.9	217	5.88
	CRBC30035	CRB 30035	300	395	35	2.5	318	372	163	299	205	408	13.4
	CRBC30040	CRB 30040	300	405	40	2.5	321	381	194	351	235	451	17.2
400	CRBC40035	CRB 40035	400	480	35	2.5	414	457	133	300	165	400	14.5
	CRBC40040	CRB 40040	400	510	40	2.5	423	483	222	455	270	590	23.5
	CRBC40070	CRB 40070	400	580	70	2.5	430	532	470	811	576	1060	72.4
500	CRBC50040	CRB 50040	500	600	40	2.5	517	573	211	497	259	648	26
	CRBC50050	CRB 50050	500	625	50	2.5	531	592	247	561	306	747	41.7
	CRBC50070	CRB 50070	500	680	70	2.5	530	633	536	1020	653	1330	86.1
600	CRBC60040	CRB 60040	600	700	40	3	621	676	231	581	287	774	30.6
	CRBC60070	CRB 60070	600	780	70	3	630	734	591	1230	700	1540	102
	CRBC600120	CRB 600120	600	870	120	3	643	817	1250	2210	1490	2800	274
700	CRBC70045	CRB 70045	700	815	45	3	730	785	250	681	301	917	46.5
	CRBC70070	CRB 70070	700	880	70	3	731	834	630	1390	766	1810	115
	CRBC700150	CRB 700150	700	1020	150	3	751	953	1660	3010	1980	3820	478
800	CRBC80070	CRB 80070	800	950	70	4	831	907	417	1090	513	1440	109
800	CRBC800100	CRB 800100	800	1030	100	4	840	972	936	2040	1140	2640	247
